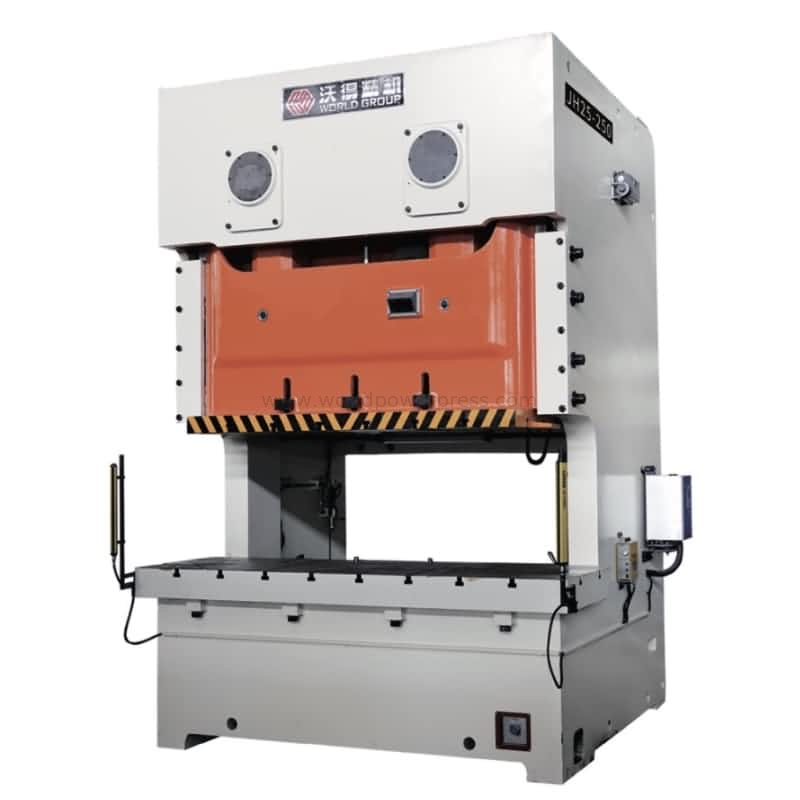

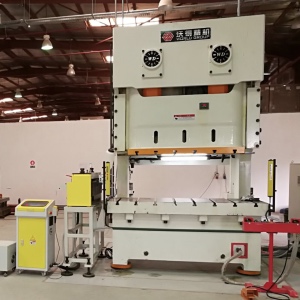

Wide table suitable for progressive die and muti-station die stampingWider bolster and slide plate than single crank press, suitable for big size tools. C type body, open back, easier for side coil sheet feeding or front to back sheet feeding. Two tonnage center points, bigger power at ram sides. Bolster surface grinding, higher flatness.Customized scrap dropping holes in bolster. Bolster and slide plate sizes are customizable. Standard T slots in bolster and slide plate. |
Double crankshaft, 42CrMo forged and rolling treatment for more smooth surface. Reverse rotated to eliminate the lateral force. Copper conrod bush, high quality front and rear shaft bushes, all grease lubricated. Ball screw nitrogen treatment with high hardness. Proper two transmission gears timing.

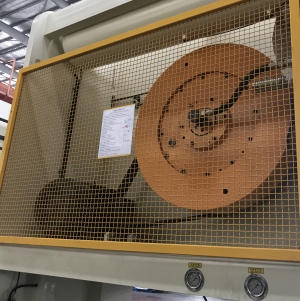

Big torque wet type pneumatic clutch with solenoid valveSelf-produced high quality wet type combine clutch and brake, reliable and easier maintenance. Toyooki/Taco/Ross brand dual-safety solenoid valve controls the clutch and brake working properly. Air pressure meter of clutch with safety air pressure switch ensures properly and safety opertation of the crank punching press. Safety clutch cover is also standard equipped. |

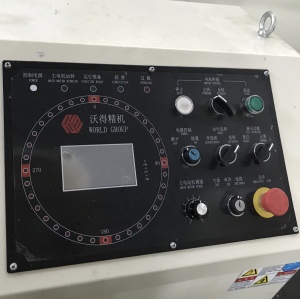

Friendly easy operation HMI for automatic press machineLCD touch screen with setting and monitor functions. Operator can set the lubrication frequency and time, the cam angles, the cam controller type through the screen. Crankshaft angle indicator light, lubrication and overload alarm lights are easier for operator to check the press working status. Emergency stop button, working mode selecting swithes, overload reset switch are located on the panel. Counter and pre-set counter is convenient to arrange the production plan. |
Both mechanical and electric cam controllers. Cam controllers are selectable by the touch screen. Auxilliay user cam controllers are available. High quality encoder with famous brand PLC (Omron, Panansonic, Schneider).
Wide table suitable for progressive die and muti-station die stampingWider bolster and slide plate than single crank press, suitable for big size tools. C type body, open back, easier for side coil sheet feeding or front to back sheet feeding. Two tonnage center points, bigger power at ram sides. Bolster surface grinding, higher flatness.Customized scrap dropping holes in bolster. Bolster and slide plate sizes are customizable. Standard T slots in bolster and slide plate. |
Double crankshaft, 42CrMo forged and rolling treatment for more smooth surface. Reverse rotated to eliminate the lateral force. Copper conrod bush, high quality front and rear shaft bushes, all grease lubricated. Ball screw nitrogen treatment with high hardness. Proper two transmission gears timing.
Big torque wet type pneumatic clutch with solenoid valveSelf-produced high quality wet type combine clutch and brake, reliable and easier maintenance. Toyooki/Taco/Ross brand dual-safety solenoid valve controls the clutch and brake working properly. Air pressure meter of clutch with safety air pressure switch ensures properly and safety opertation of the crank punching press. Safety clutch cover is also standard equipped. |
Friendly easy operation HMI for automatic press machineLCD touch screen with setting and monitor functions. Operator can set the lubrication frequency and time, the cam angles, the cam controller type through the screen. Crankshaft angle indicator light, lubrication and overload alarm lights are easier for operator to check the press working status. Emergency stop button, working mode selecting swithes, overload reset switch are located on the panel. Counter and pre-set counter is convenient to arrange the production plan. |
Both mechanical and electric cam controllers. Cam controllers are selectable by the touch screen. Auxilliay user cam controllers are available. High quality encoder with famous brand PLC (Omron, Panansonic, Schneider).

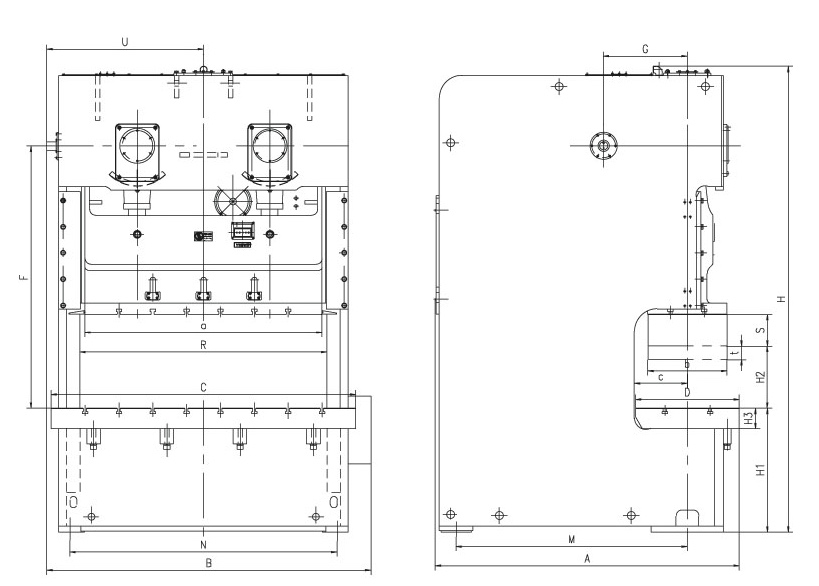

MỤC | MÃ SỐ | UNIT | JH25-110 | JH25-160 | JH25-200 | JH25-250 | JH25-315 | |
Sức chứa giả định | Thể dục | KN | 1100 | 1600 | 2000 | 2500 | 3150 | |
Chiều dài đột quỵ | S | mm | 180 | 200 | 250 | 280 | 280 | |
Điểm trọng tải được xếp hạng | mm | 5 | 6 | 7 | 7 | 7 | ||
Tốc độ đột quỵ | đã sửa | SPM | 50 | 45 | 35 | 30 | 30 | |
Biến (tùy chọn) | SPM | 35-60 | 35-55 | 25-40 | 20-35 | 20-35 | ||
Tối đa. Chế độ chết đóng | H2 | mm | 400 | 450 | 500 | 550 | 550 | |
Điều chỉnh chiều cao đóng chết | t | mm | 90 | 100 | 110 | 120 | 120 | |
Độ sâu họng | G | mm | 350 | 390 | 430 | 470 | 480 | |
Khoảng cách giữa những người nổi dậy | N | mm | 1470 | 1600 | 1920 | 2190 | 2170 | |
Kích thước bảng | F-B | D | mm | 680 | 760 | 840 | 920 | 940 |
L-R | C | mm | 1880 | 2040 | 2420 | 2700 | 2800 | |
Độ dày | H3 | mm | 155 | 165 | 170 | 180 | 190 | |
Trượt kích thước đáy | F-B | b | mm | 520 | 580 | 650 | 700 | 700 |
L-R | a | mm | 1400 | 1500 | 1850 | 2100 | 2100 | |
Chiều cao bề mặt bàn (với miếng đệm) | H1 | mm | 1005 | 1005 | 1125 | 1225 | 1215 | |
Kích thước tổng thể | F-B | A | mm | 1820 | 2080 | 2370 | 2700 | 2700 |
L-R | B | mm | 1970 | 2150 | 2500 | 2850 | 2850 | |
Chiều cao | H | mm | 3430 | 3660 | 4000 | 4400 | 4400 | |
Động cơ điện | KW | 11 | 18.5 | 22 | 30 | 37 | ||
Áp suất không khí | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||
Trọng lượng (gần đúng) | Kilôgam | 14000 | 19000 | 26500 | 35000 | 36000 |
